Compatible with SOFARSOLAR storage inverter.
CANbus / RS485 communication interface available between inverter and battery.
Self-designed BMS inside to monitor battery status & build in protection function.
Scaleable battery design - Can extend the using time when batteries in parallel.
Allow easy wall-mounted installation or battery module placement into cabinet.
Simple connection between inverter and battery to save installation time & cost.
Long cycle life ( > 4000 times ), 10 years lifespan.
TUV / UN certification approval.

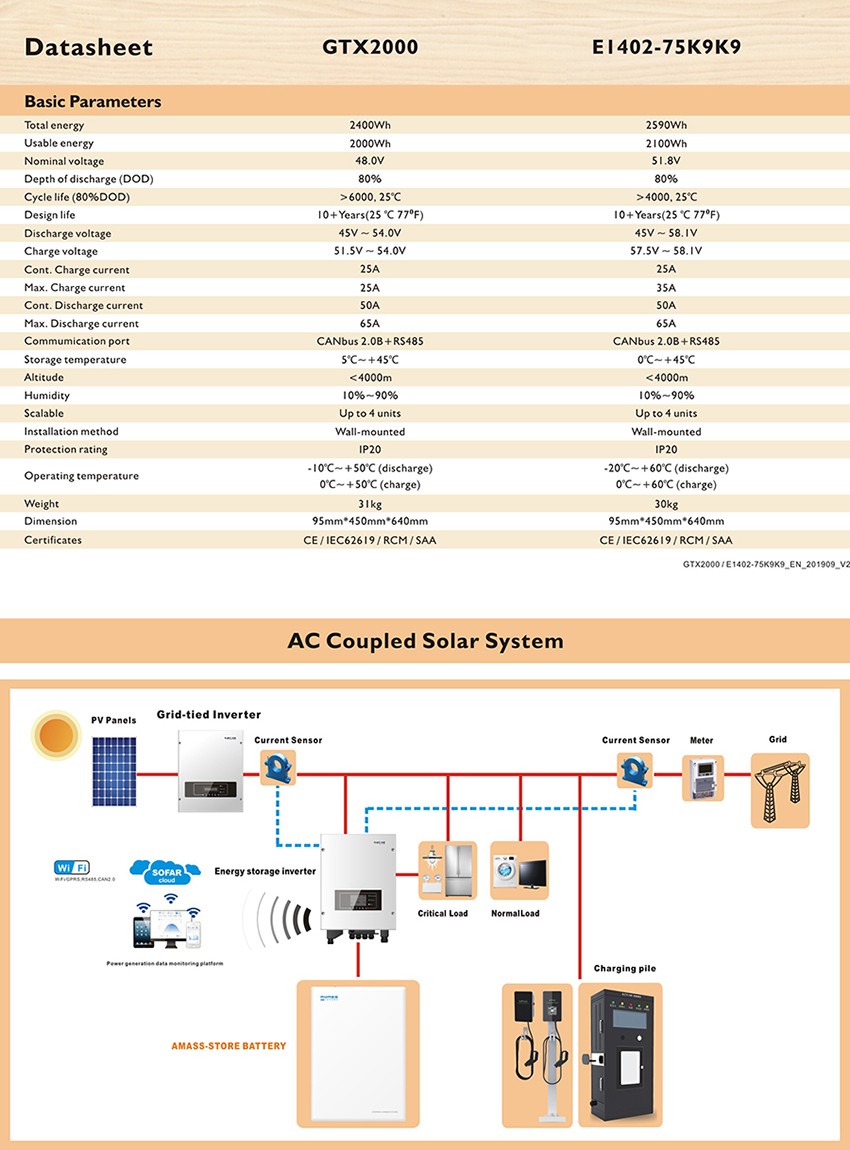

Datasheet | Ooitech GTX2000 |
Basic Parameters | |
Total Energy | 2400Wh |
Usable Energy | 2000w |
Nominal Voltage | 48.0V |
Depth of discharge (DOD) | 80% |
Cycle Life (80%DOD) | >6000,25℃ |
Design Life | 10+years(25℃77℉) |
Discharge Voltage | 45~54V |
Charge Voltage | 51.5V~54.0V |
Cont. Charge Current | 25A |
Max. Charge Current | 25A |
Cont. Discharge Current | 50A |
Max. Discharge Current | 65A |
Communication Port | CANbus 2.0B+ RS485 |
Storage Temperature | 5℃~+45℃ |
Altitude | <4000m |
Humidity | 10%~90% |
Scalable | Up to 4 units |
Installation method | Wall-mounted |
Protection rating | IP20 |
Operating Temperature | -10℃~+50℃(discharge) 0℃~+50℃(charge) |
Weight | 31kg |
Dimension | 95mm*450mm*640mm |
Certificates | CE/IEC62619/RCM/SAA |
