Compatible with SOFARSOLAR storage inverter.
CANbus / RS485 communication interface available between inverter and battery.
Self-designed BMS inside to monitor battery status & build in protection function.
Scaleable battery design - Can extend the using time when batteries in parallel.
Allow easy wall-mounted installation or battery module placement into cabinet.
Simple connection between inverter and battery to save installation time & cost.
Long cycle life ( > 4000 times ), 10 years lifespan.
TUV / UN certification approval.

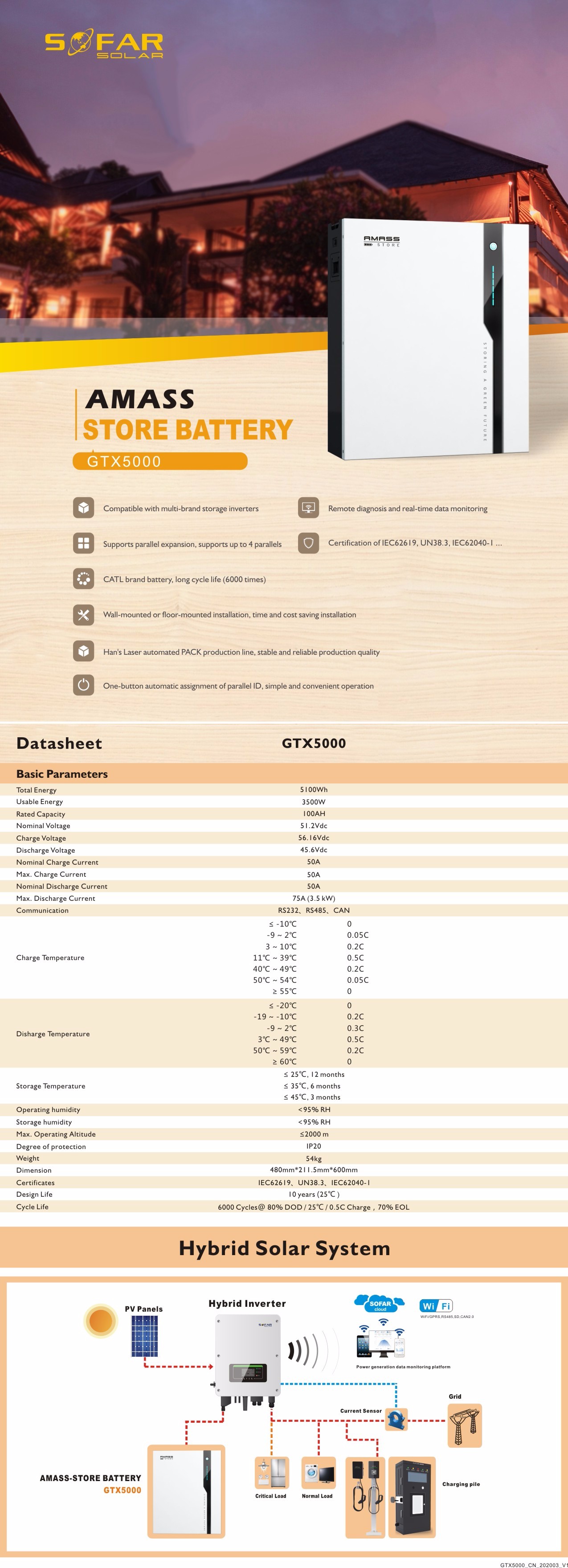

Datasheet | Ooitech GTX5000 |
Basic Parameters | |
Total Energy | 5100Wh |
Usable Energy | 3500w |
Rated Capacity | 100AH |
Nominal Voltage | 51.2Vdc |
Charge Voltage | 56.16Vdc |
Discharge Voltage | 45.6Vdc |
Nominal Charge Current | 50A |
Max. Charge Current | 50A |
Nominal Discharge Current | 50A |
Max. Discharge Current | 75A(3.5kw) |
Communication | RS232、RS485、CAN |
Charge Temperature | ≤-10℃ 0 -9~2℃ 0.05C 3~10℃ 0.2C 11℃~39℃ 0.5C 40℃~49℃ 0.2C 50℃~54℃ 0.05C ≥55℃ 0 |
Discharge Temperature | ≤-20℃ 0 -19~-10℃ 0.2C -9~2℃ 0.3C 3℃~49℃ 0.5C 50℃~59℃ 0.2C ≥60℃ 0 |
Storage Temperature | ≤25℃, 12 months ≤35℃,6 months ≤45℃, 3 months |
Operating humidity | <95% RH |
Storage humidity | <95% RH |
Max. Operating Altitude | ≤2000 m |
Degree of protection | IP20 |
Weight | 54kg |
Dimension | 480mm*211.5mm*600mm |
Certificates | IEC62619 UN38.3 IEC62040-1 |
Design Life | 10 years(25℃) |
Cycle Life | 6000 Cycles@80%DOD/25℃ Charge, 70%EOL |
