Ensure completeness of collected data
Realtime alerts with immediate notification for fast troubleshooting
Industrial-level SIM chip integrated for stable operation and high performance
Suitable for rural areas where no network connection is available
High network coverage around the world
Devices could be upgraded and debugged remotely for easy maintenance
Quick installation and easy operation with “Plug & Play” function
Check the system status anytime and anywhere via online portal or app, no additional software required

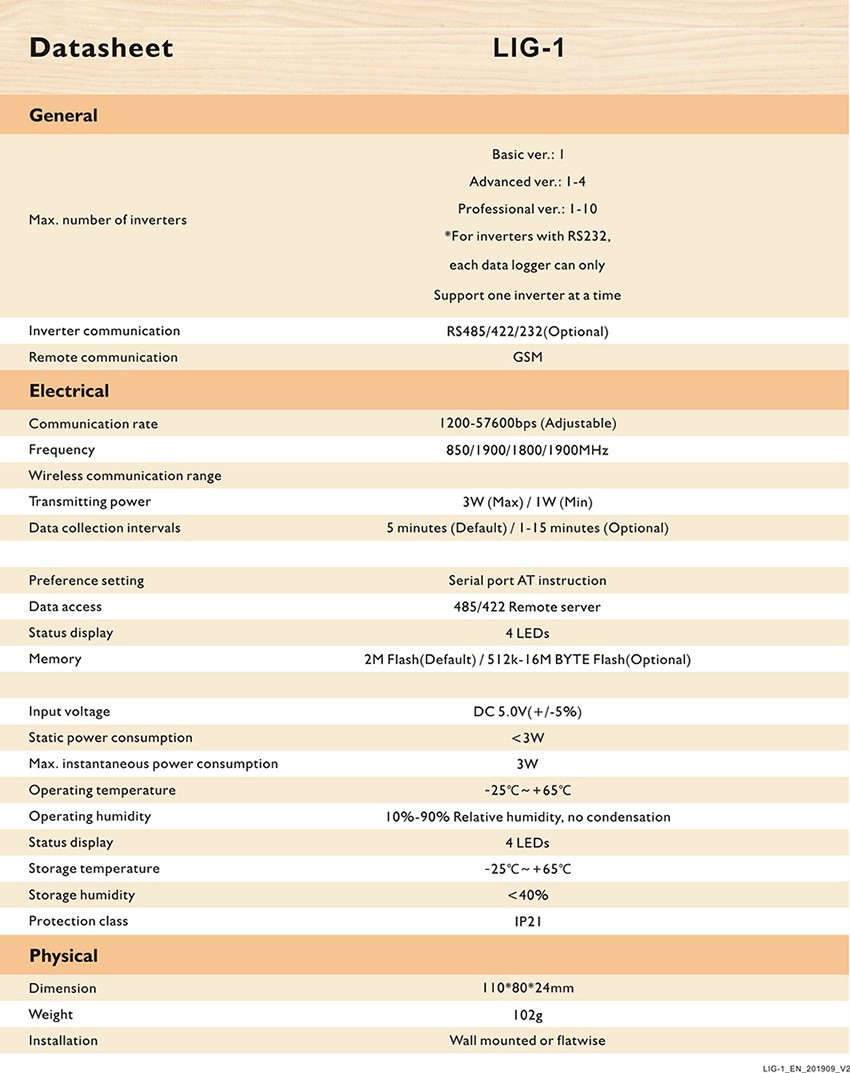

Datasheet | OOITECH LIG-1 |
General | |
Max. number of inverters | Basic ver.: 1 Advanced ver.: 1-4 Professional ver.: 1-10 For inverters with RS232, each data logger can only Support one inverter at a time |
Inverter communication | RS485/422/232(Optional) |
Remote communication | GSM |
Electrical | |
Communication rate | 1200-57600bps (Adjustable) |
Frequency | 850/1900/1800/1900MHz |
Wireless communication range | |
Transmitting power | 3W (Max) / 1W (Min) |
Data collection intervals | 5 minutes (Default) / 1-15 minutes (Optional) |
Preference setting | Serial port AT instruction |
Data access | 485/422 Remote server |
Status display | 4 LEDs |
Memory | 2M Flash(Default) / 512k-16M BYTE Flash(Optional) |
Input voltage | DC 5.0V(+/-5%) |
Static power consumption | <3W |
Max. instantaneous power consumption | 3W |
Operating temperature | -25℃~+65℃ |
Operating humidity | 10%-90% Relative humidity, no condensation |
Status display | 4 LEDs |
Storage temperature | -25℃~+65℃ |
Storage humidity | <40% |
Protection class | IP21 |
Physical | |
Dimension | 110*80*24mm |
Weight | 102g |
Installatio | Wall mounted or flatwise |
