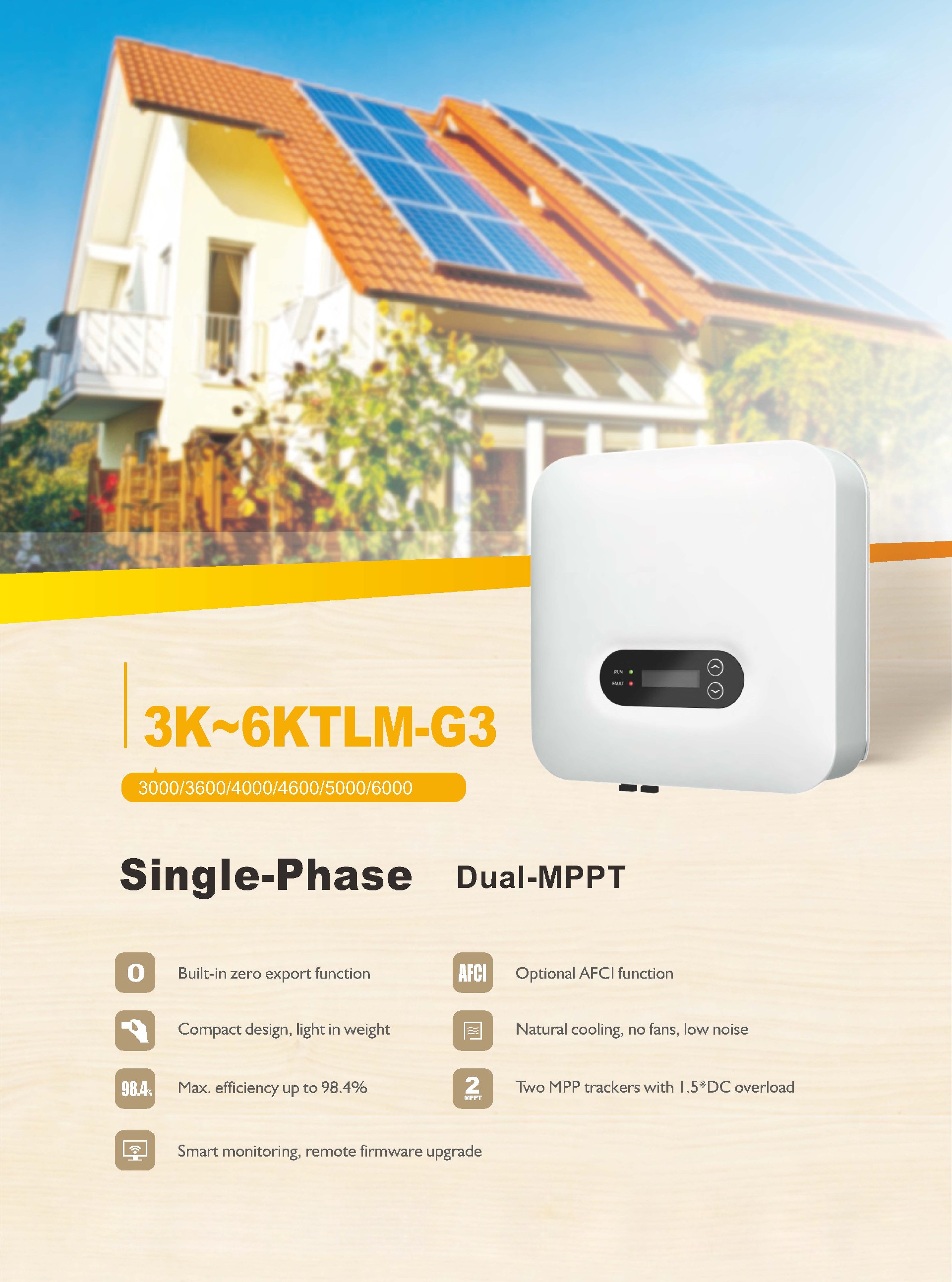

OOITECH 6KTLM-G3 On-Grid Single-Phase Dual-MPPT Solar Inverter
OOITECH 6KTLM-G3 On-Grid Single-Phase Dual-MPPT Solar Inverter

OOITECH 6KTLM-G3 On-Grid Single-Phase Dual-MPPT Solar Inverter

Time: 2021-12-21
visits: 42
PV Out Power: 3-6KW
Phase: Single Phase
Grid: on-grid
Details

High-yield

All in one. Flexible and economical system solution

Low maintenance cost

Intelligent grid management

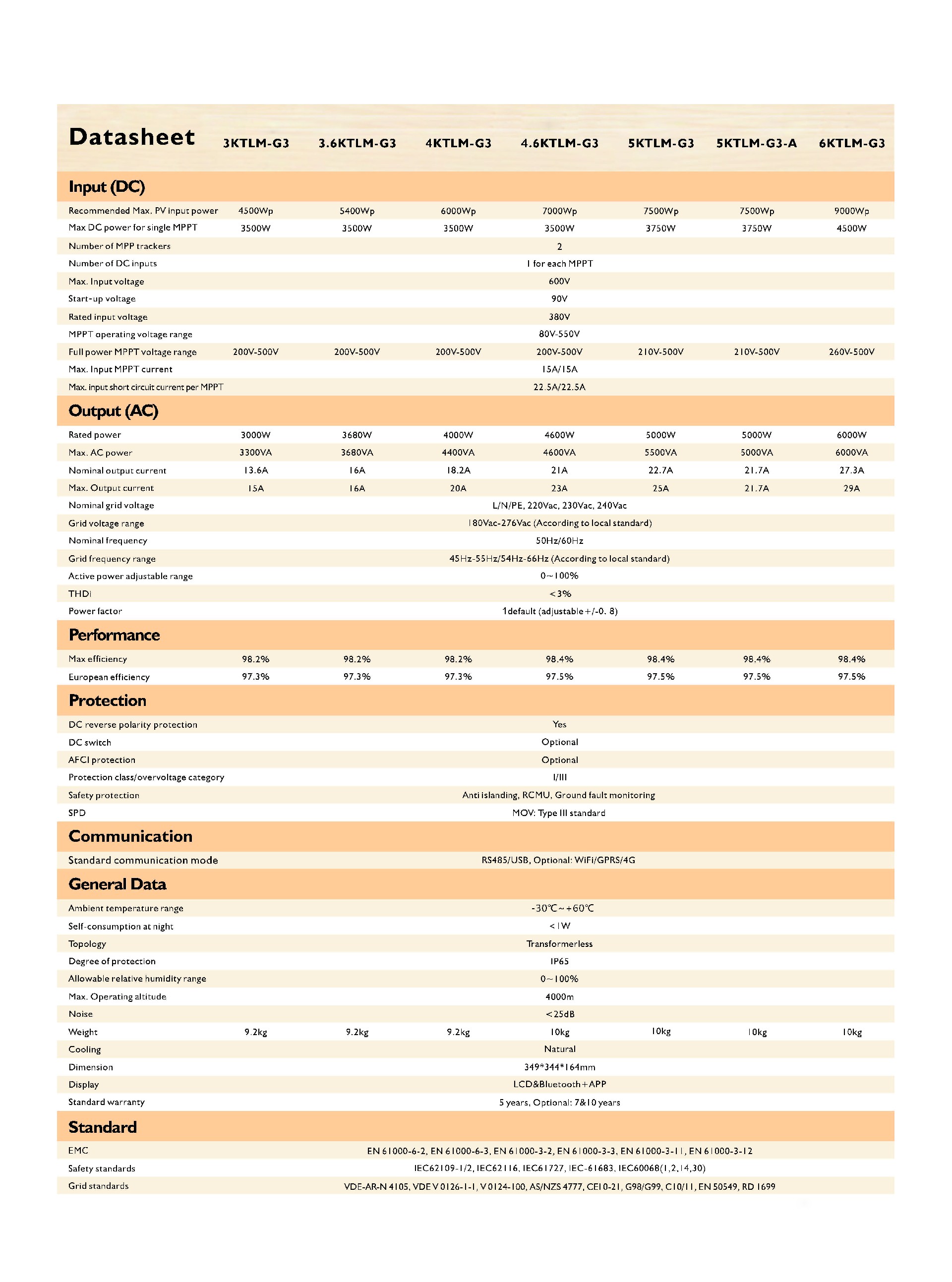

Datasheet

Ooitech

3KTLM-G3

Ooitech

3.6KTLM-G3

Ooitech

4KTLM-G3

Ooitech

4.6KTLM-G3

Ooitech

5KTLM-G3

Ooitech

5KTLM-G3-A

Ooitech

6KTLM-G3

Input (DC)

Recommended Max. PV input power

4500Wp

5400Wp

6000Wp

7000Wp

7500Wp

7500Wp

9000Wp

Max DC power for single MPPT

3500W

3500W

3500W

3500W

3750W

3750W

4500W

Number of MPP trackers

2

Number of DC inputs

1 for each MPPT

Max. Input voltage

600V

Start-up voltage

90V

Rated input voltage

380V

MPPT operating voltage range

80V-550V

Full power MPPT voltage range

200V-500V

200V-500V

200V-500V

200V-500V

210V-500V

210V-500V

260V-500V

Max. Input current per MPPT

15A/15A

Maxnimun DC input short circuit   current per MPPT

22.5A/22.5A

Outpu(AC)

Rated power

3000W

3680W

4000W

4600W

5000W

5000W

6000W

Max. AC power

3300VA

3680VA

4400VA

4600VA

5500VA

5000VA

6000VA

Max. Output current

13.6A

16A

18.2A

21A

22.7A

21.7A

27.3A

Nominal grid voltage

L/N/PE, 220Vac, 230Vac, 240Vac

Grid voltage range

180Vac-276Vac (According to local   standard)

Nominal    frequency

50Hz/60Hz

Grid frequency range

45~55Hz/54~66Hz (According to local standard)

Active power adjustable range

0~100%

THDi

<3%

Power factor

1 default (adjustable+/-0. 8)

Performance

Max Efficiency

98.2%

98.2%

98.2%

98.4%

98.4%

98.4%

98.4%

European weighted efficiency

97.3%

97.3%

97.3%

97.5%

97.5%

97.5%

97.5%

Protection

DC reverse polarity protection

Yes

DC switch

Optional

AFCI protection

Optional

Protection class/overvoltage category

I/III

Safety protection

Anti islanding, RCMU, Ground fault   monitoring

SPD

MOV: Type III standard

Communication

Standard communication mode

RS485/USB,Optional: WiFi /GPRS/4G

General Data

Ambient temperature range

-30~+60

Self-consumption at night

<1W

Topology

Transformerless

Degree of protection

IP65

Allowable relative humidity range

0~100%

Max. Operating altitude

4000m

Noise

<25dB

Weight

9.2kg

9.2kg

9.2kg

10kg

10kg

10kg

10kg

Cooling

Natural

Dimension

349*344*164mm

Display

LCD & Bluetooth + APP

Warranty

5 years, Optional: 7 & 10 years

Standard

EMC

EN 61000-6-2, EN 61000-6-3, EN   61000-3-2,   EN 61000-3-3, EN 61000-3-11, EN 61000-3-12

Safety standards

IEC62109-1/2, IEC62116, IEC61727,   IEC-61683,   IEC60068(1,2,14,30)

Grid standards

VDE-AR-N 4105, VDE V 0126-1-1, V   0124-100, AS/NZS 4777, CEI 0-21, G98/G59, C10/11, EN50549, RD1699
