High-yield
Max 97.2% efficiency
Real time precise MPPT algorithm for max harvest
Wide input voltage operation range
All in one. Flexible and economical system solution
Free site selection due to IP65
Easy installation and maintenance due to “Plug & Play” connection
Interface selection-Wi-Fi / RS485 / GPRS
4” LCD display
Built in zero export function(optional)
Low maintenance cost
Detachable cover for easy installation
Rust-free aluminum covers
Flexible monitoring solution
Intelligent grid management
Reactive power capability
Self power reducer when over frequency
Remote active/reactive power limit control

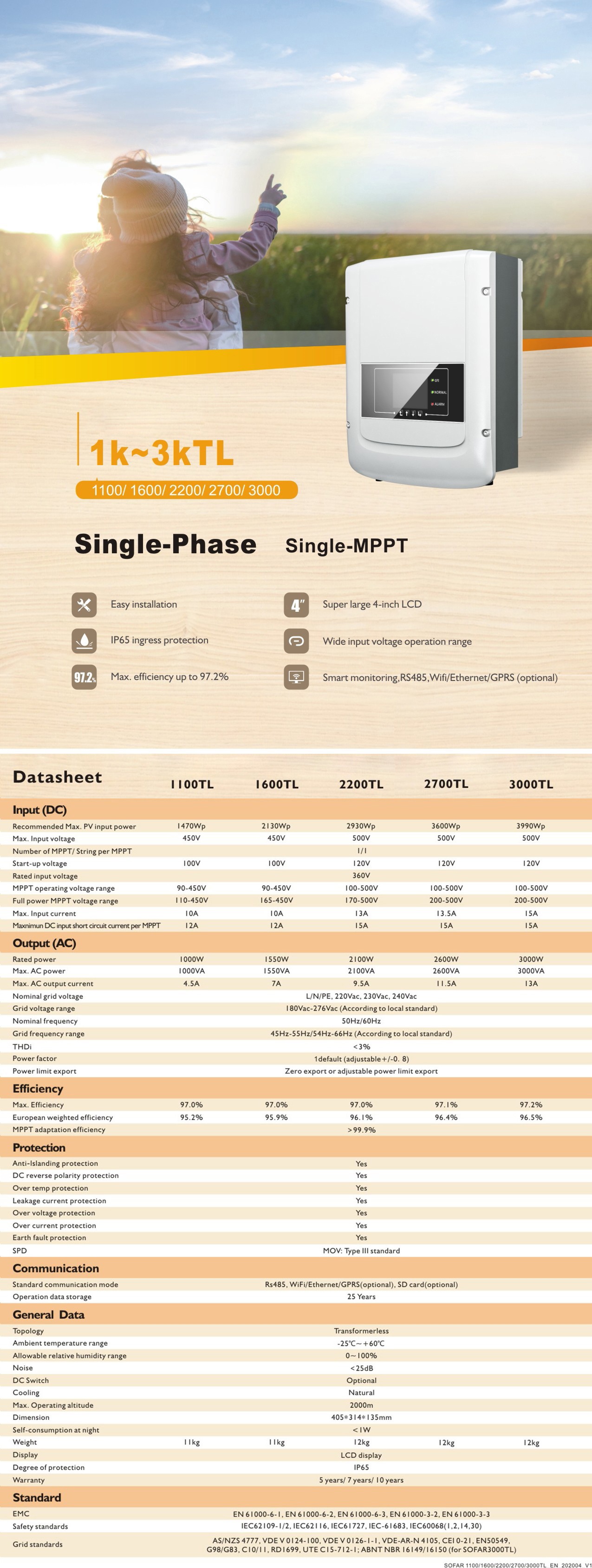

Datasheet | Ooitech 1100TL | Ooitech 1600TL | Ooitech 2200TL | Ooitech 2700TL | Ooitech 3000TL |
Input (DC) | |||||
Recommended Max. PV input power | 1470Wp | 2130Wp | 2930Wp | 3600Wp | 3990Wp |
Max. Input voltage | 450V | 450V | 500V | 550V | 550V |
Number of MPPT/ String per MPPT | 1/1 | ||||
Start-up voltage | 100V | 100V | 120V | 120V | 120V |
Rated input voltage | 360V | ||||
MPPT operating voltage range | 90-450V | 90-450V | 100-500V | 100-500V | 100-500V |
Full power MPPT voltage range | 110-450V | 165-450V | 170-500V | 200-500V | 200-500V |
Max. Input current | 10A | 10A | 13A | 13.5A | 15A |
Maxnimun DC input short circuit current per MPPT | 13A | 13A | 15A | 15A | 15A |
Output (AC) | |||||
Rated power | 1000W | 1550W | 2100W | 2600W | 3000W |
Max. AC power | 1000VA | 1550VA | 2100VA | 2600VA | 3000VA |
Max. AC output current | 4.5A | 7A | 9.5A | 11.5A | 13A |
Nominal grid voltage | L/N/PE, 220Vac, 230Vac, 240Vac | ||||
Grid voltage range | 180Vac-276Vac (According to local standard) | ||||
Nominal frequency | 50Hz/60Hz | ||||
Grid frequency range | 45Hz-55Hz/54Hz-66Hz (According to local standard) | ||||
THDi | <3% | ||||
Power factor | 1 default (adjustable+/-0. 8) | ||||
Power limit export | Zero export or adjustable power limit export | ||||
Efficiency | |||||
Max. Efficiency | 97.0% | 97.0% | 97.0% | 97.1% | 97.2% |
European weighted efficiency | 95.2% | 95.9% | 96.1% | 96.4% | 96.5% |
MPPT adaptation efficiency | >99.9% | ||||
Protection | |||||
Anti-lslanding protection | Yes | ||||
DC reverse polarity protection | Yes | ||||
Over temp protection | Yes | ||||
Leakage current protection | Yes | ||||
Over voltage protection | Yes | ||||
Over current protection | Yes | ||||
Earth fault protection | Yes | ||||
SPD | MOV: Type III standard | ||||
Communication | |||||
Standard communication mode | Rs485, WiFi/Ethernet/GPRS(optional), SD card(optional) | ||||
Operation data storage | 25 | ||||
General Data | |||||
Topology | Transformerless | ||||
Ambient temperature range | -25℃~+60℃ | ||||
Allowable relative humidity range | 0~100% | ||||
Noise | <25dB | ||||
DC Switch | Optional | ||||
Cooling | Natural | ||||
Max. Operating altitude | 2000m | ||||
Dimension | 405* 314* 135mm | ||||
Self-consumption at night | <1W | ||||
Weight | 11kg | 11kg | 12kg | 12kg | 12kg |
Display | LCD display | ||||
Degree of protection | IP65 | ||||
Warranty | 5 years/ 7 years/ 10 years | ||||
Standard | |||||
EMC | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3 | ||||
Safety standards | IEC62109-1/2, IEC62116, IEC61727, IEC-61683, IEC60068(1,2,14,30) | ||||
Grid standards | AS/NZS 4777, VDE V 0124-100, VDE V 0126-1-1, VDE-AR-N 4105, CEI 0-21, EN50549, G98/G83, C10/11, RD1699, UTE C15-712-1; ABNT NBR 16149/16150 (for OOITECH 3000TL) | ||||
