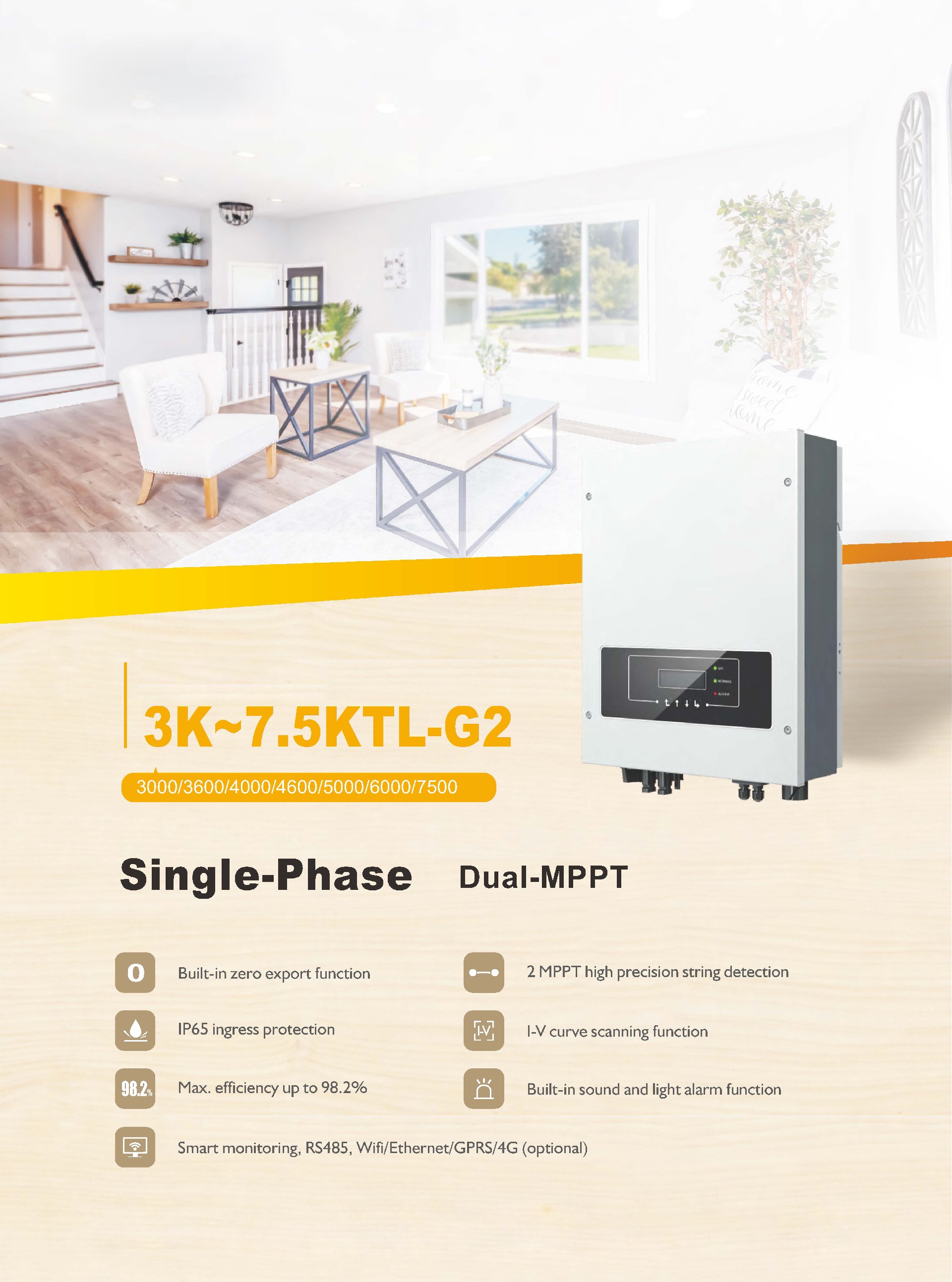

OOITECH 3.6KTLM-G2 On-Grid Single-Phase Dual-MPPT Solar Inverter
OOITECH 3.6KTLM-G2 On-Grid Single-Phase Dual-MPPT Solar Inverter

OOITECH 3.6KTLM-G2 On-Grid Single-Phase Dual-MPPT Solar Inverter

Time: 2021-12-21
visits: 89
PV Out Power: 3-7.5KW
Phase: Single Phase
Grid: on-grid
Details

High-yield

Low maintenance cost

All in one. Flexible and economical system solution

Intelligent grid management

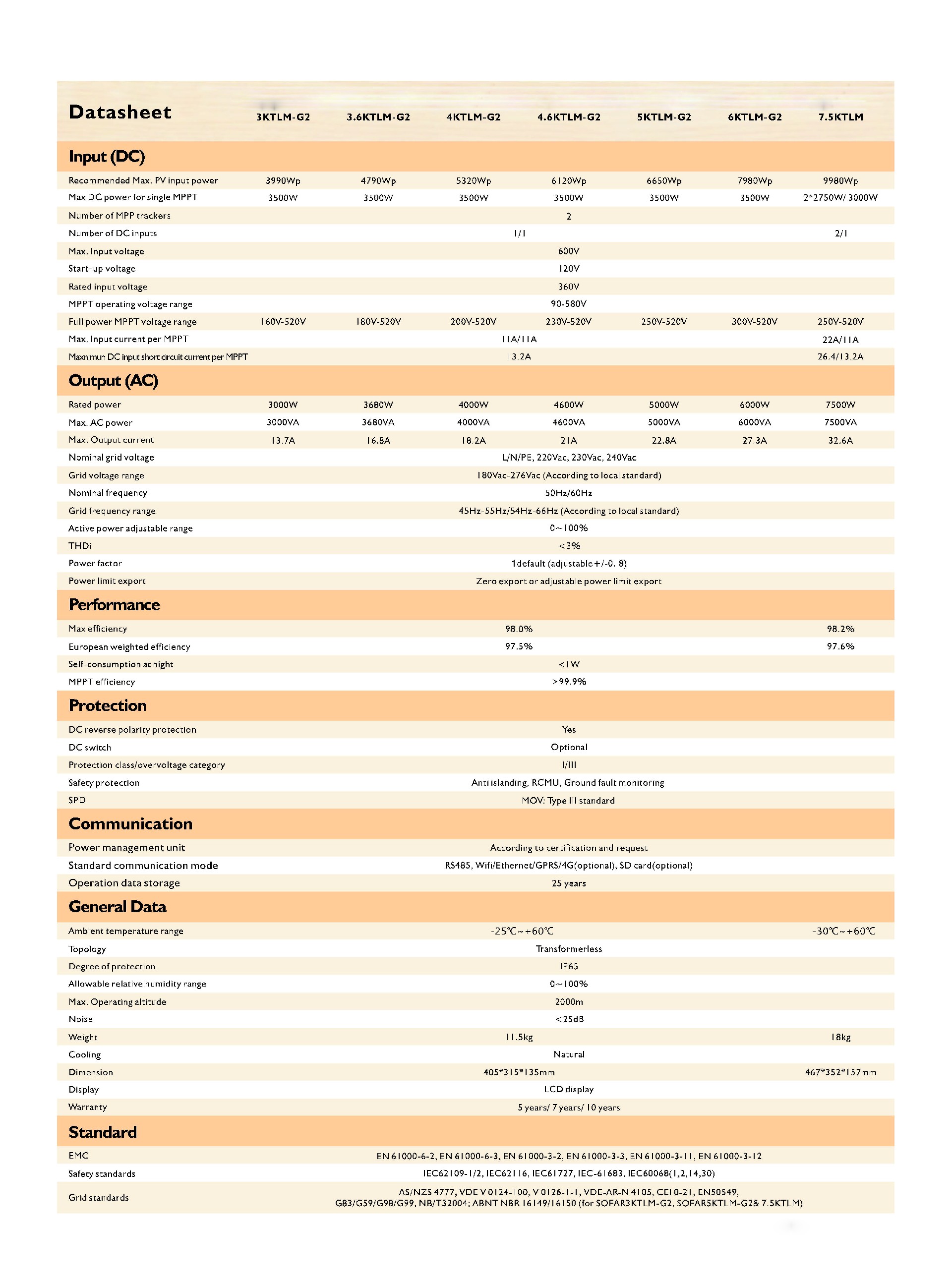

Datasheet

Ooitech

3KTLM-G2

Ooitech

3.6KTLM-G2

Ooitech

4KTLM-G2

Ooitech

4.6KTLM-G2

Ooitech

5KTLM-G2

Ooitech

6KTLM-G2

Ooitech

7.5KTLM

Input   (DC)

Recommended Max. PV input power

3990Wp

4790Wp

5320Wp

6120Wp

6650Wp

7980Wp

9980Wp

Max DC power for single MPPT

3500W

3500W

3500W

3500W

3500W

3500W

2*2750W/ 3000W

Number of MPP trackers

2

Number of DC inputs

1/1

2/1

Max. Input voltage

600V

Start-up voltage

120V

Rated input voltage

360V

MPPT operating voltage range

90-580V

Full power MPPT voltage range

160V-520V

180V-520V

200V-520V

230V-520V

250V-520V

300V-520V

250V-520V

Max. Input current per MPPT

11A/11A

22A/11A

Maximum DC input short circuit current   per MPPT

13.2A

26.4/13.2A

Outpu(AC)


Rated power

3000W

3680W

4000W

4600W

5000W

6000W

7500W

Max. AC power

3000VA

3680VA

4000VA

4600VA

5000VA

6000VA

7500VA

Max. Output current

13.7A

16.8A

18.2A

21A

22.8A

27.3A

32.6A

Nominal grid voltage

L/N/PE, 220Vac, 230Vac, 240Vac

Grid voltage range

180Vac-276Vac (According to local   standard)

Nominal    frequency

50Hz/60Hz

Grid frequency range

45Hz-55Hz/54Hz-66Hz (According to   local standard)

Active power adjustable range

0~100%

THDi

<3%

Power factor

1default (adjustable+/-0. 8)

Power limit export

Zero export or adjustable power limit   export

Performance

Max Efficiency

98.0%

98.2%

European weighted efficiency

97.5%

97.6%

Self-consumption at night

<1W

Feed-in start power

50W

MPPT efficiency

>99.9%

Protection

DC reverse polarity protection

Yes

DC switch

Optional

Protection class/overvoltage category

I/III

Safety protection

Anti islanding, RCMU, Ground fault   monitoring

SPD

MOV: Type III standard

Communication

Power management unit

According to certification and request

Standard communication mode

Rs485, Wifi/Ethernet/GPRS(optional),   SD card(optional)

Operation data storage

25 years

General Data

Ambient temperature range

-25~+60

-30~+60

Topology

Transformerless

Degree of protection

IP65

Allowable relative humidity range

0~100%

Max. Operating altitude

2000m

Noise

<25dB

Weight

11.5kg

18kg

Cooling

Natural

Dimension

405*315*135mm

467*352*157mm

Display

LCD display

Warranty

5 years/ 7 years/ 10 years

Standard

EMC

EN 61000-6-2, EN 61000-6-3, EN   61000-3-2,   EN 61000-3-3, EN 61000-3-11, EN 61000-3-12

Safety standards

IEC62109-1/2, IEC62116, IEC61727,   IEC-61683,   IEC60068(1,2,14,30)

Grid standards

AS/NZS 4777, VDE V 0124-100, V   0126-1-1, VDE-AR-N   4105, CEI 0-21, EN50549, G83/G59/G98/G99,   NB/T32004; ABNT NBR 16149/16150 (for OOITECH 3KTLM- G2, OOITECH 5KTLM-   G2& 7.5KTLM)
