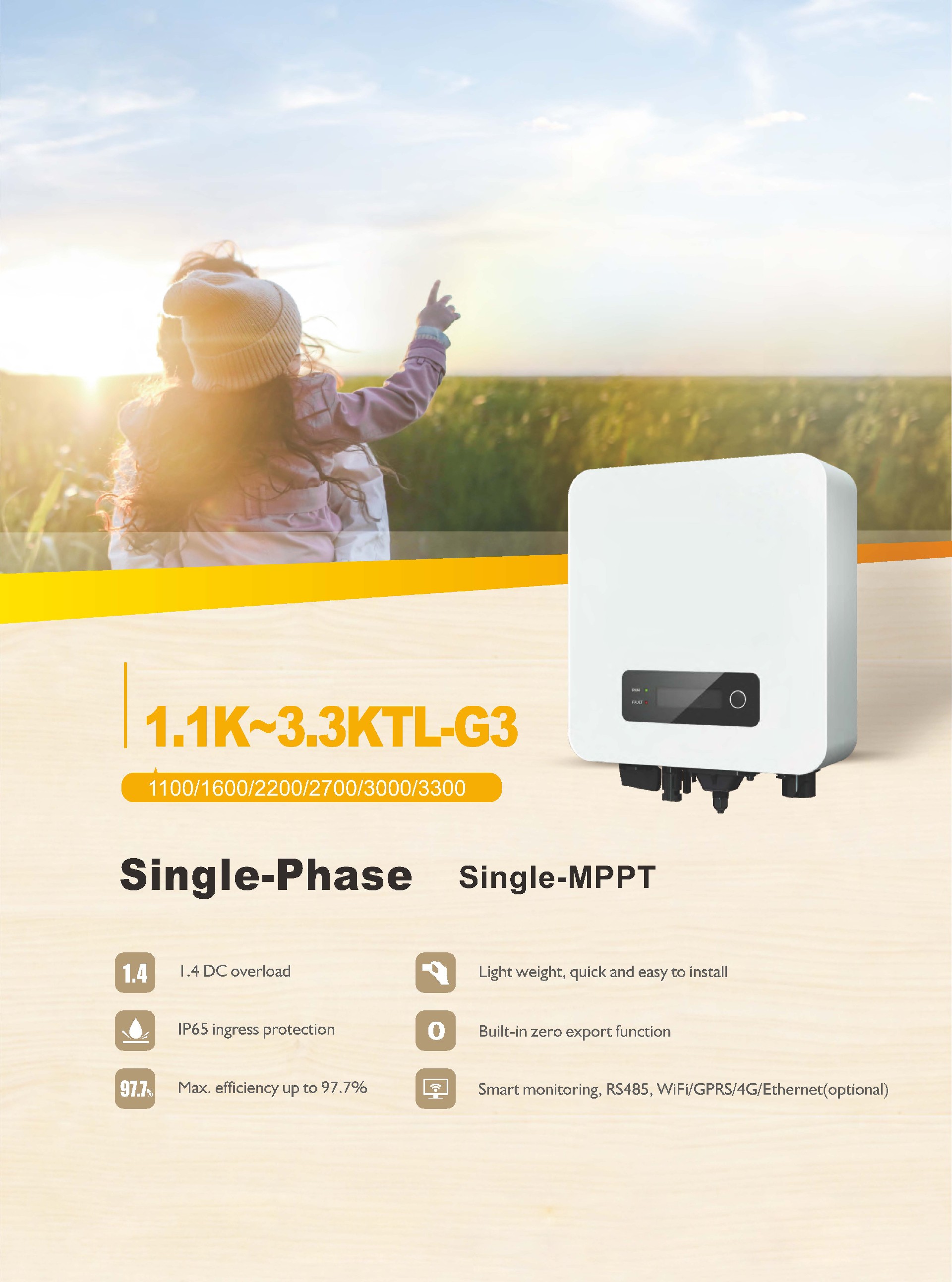

High-yield
Max 97.7% efficiency
Real time precise MPPT algorithm for max harvest
Wide input voltage operation range
All in one. Flexible and economical system solution
Free site selection due to IP65
Easy installation and maintenance due to “Plug & Play” connection
Interface selection-Wi-Fi / RS485 /GPRS
Built in zero export function(optional)
Low maintenance cost
Detachable cover for easy installation
Rust-free aluminum covers
Flexible monitoring solution
Intelligent grid management
Reactive power capability
Self power reducer when over frequency
Remote active/reactive power limit control

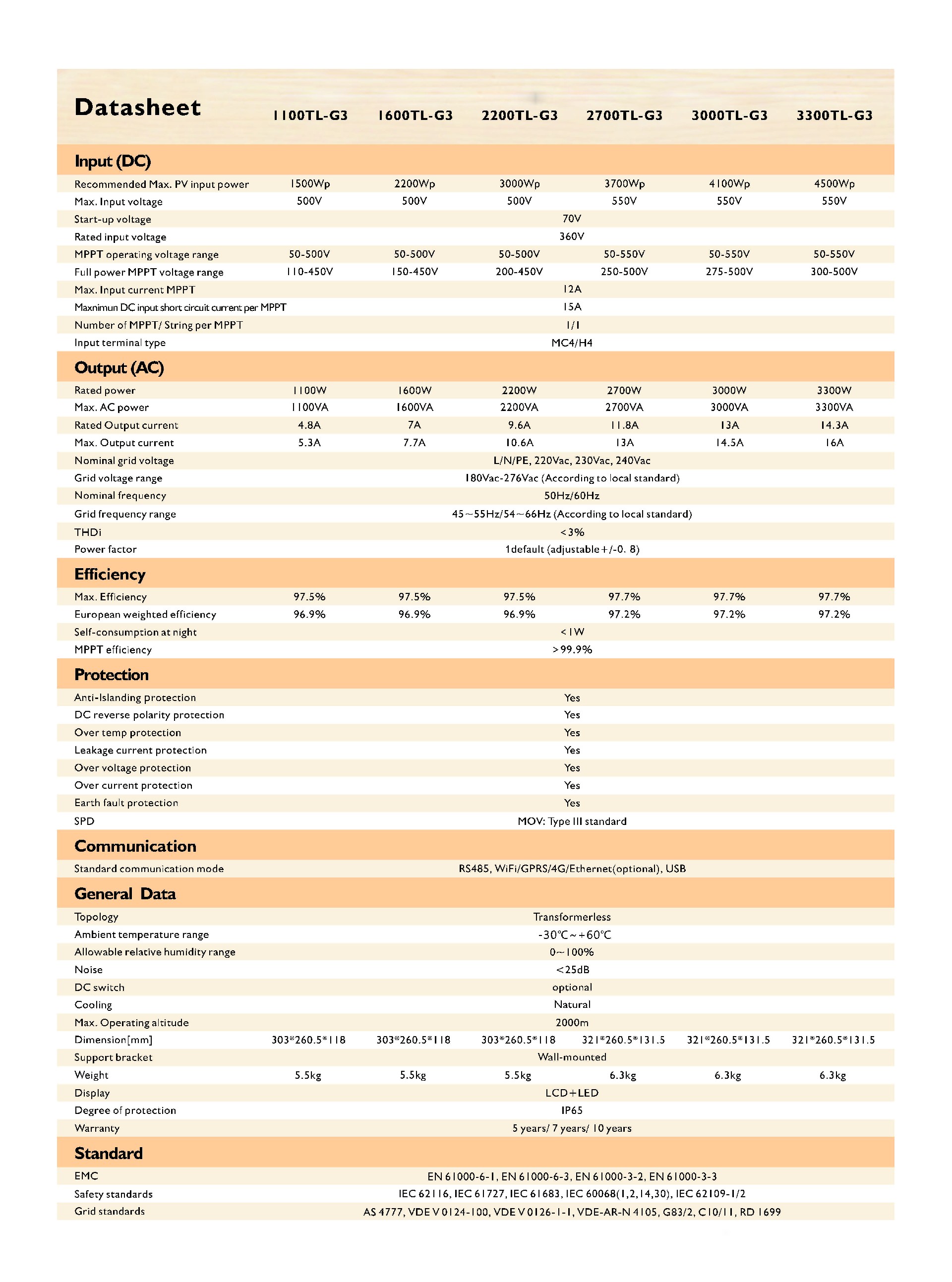

Datasheet | Ooitech 1100TL- G3 | Ooitech 1600TL- G3 | Ooitech 2200TL-G3 | Ooitech 2700TL- G3 | Ooitech 3000TL- G3 | Ooitech 3300TL- G3 |
Input (DC) | ||||||
Recommended Max. PV input power | 1500Wp | 2200Wp | 3000Wp | 3700Wp | 4100Wp | 4500Wp |
Max. Input voltage | 500V | 500V | 500V | 550V | 550V | 550V |
Start-up voltage | 70V | |||||
Rated input voltage | 360V | |||||
MPPT operating voltage range | 50-500V | 50-500V | 50-500V | 50-550V | 50-550V | 50-550V |
Full power MPPT voltage range | 110-450V | 150-450V | 200-450V | 250-500V | 275-500V | 300-500V |
Max. Input current MPPT | 12A | |||||
Maximum DC input short circuit current per MPPT | 15A | |||||
Number of MPPT/ String per MPPT | 1/1 | |||||
Input terminal type | MC4/H4 | |||||
Output (AC) | ||||||
Rated power | 1100W | 1600W | 2200W | 2700W | 3000W | 3300W |
Max. AC power | 1100VA | 1600VA | 2200VA | 2700VA | 3000VA | 3300VA |
Rated Output current | 4.8A | 7A | 9.6A | 11.8A | 13A | 14.3A |
Max. Output current | 5.3A | 7.7A | 10.6A | 13A | 14.5A | 16A |
Nominal grid voltage | L/N/PE, 220Vac, 230Vac, 240Vac | |||||
Grid voltage range | 180Vac-276Vac (According to local standard) | |||||
Nominal frequency | 50Hz/60Hz | |||||
Grid frequency range | 45~55Hz/54~66Hz (According to local standard) | |||||
THDi | <3% | |||||
Power factor | 1 default (adjustable+/-0. 8) | |||||
Efficiency | ||||||
Max. Efficiency | 97.5% | 97.5% | 97.5% | 97.7% | 97.7% | 97.7% |
European weighted efficiency | 96.9% | 96.9% | 96.9% | 97.2% | 97.2% | 97.2% |
Self-consumption at night | <1W | |||||
MPPT efficiency | >99.9% | |||||
Protection | ||||||
Anti-islanding protection | Yes | |||||
DC reverse polarity protection | Yes | |||||
Over temp protection | Yes | |||||
Leakage current protection | Yes | |||||
Overvoltage protection | Yes | |||||
Over-current protection | Yes | |||||
Earth fault protection | Yes | |||||
SPD | MOV: Type III standard | |||||
Communication | ||||||
Standard communication mode | RS485, WiFi/GPRS/4G/Ethernet(optional), USB | |||||
General Data | ||||||
Topology | Transformerless | |||||
Ambient temperature range | -30℃~+60℃ | |||||
Allowable relative humidity range | 0~100% | |||||
Noise | <25dB | |||||
DC switch | optional | |||||
Cooling | Natural | |||||
Max. Operating altitude | 2000m | |||||
Dimension[mm] | 303* 260.5* 118 | 303* 260.5* 118 | 303* 260.5* 118 | 321* 260.5*131.5 | 321* 260.5*131.5 | 321* 260.5*131.5 |
Support bracket | Wall-mounted | |||||
Weight | 5.5kg | 5.5kg | 5.5kg | 6.3kg | 6.3kg | 6.3kg |
Display | LCD+LED | |||||
Degree of protection | IP65 | |||||
Warranty | 5 years/ 7 years/ 10 years | |||||
Standard | ||||||
EMC | EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3 | |||||
Safety standards | IEC 62116, IEC 61727, IEC 61683, IEC 60068(1,2,14,30), IEC 62109-1/2 | |||||
Grid standards | AS 4777, VDE V 0124-100, VDE V 0126-1-1, VDE-AR-N 4105, G83/2,C10/11, RD 1699 | |||||
