OOITECH 15KTLX-G3 On-Grid Three-Phase Dual-MPPT Solar Inverter
OOITECH 15KTLX-G3 On-Grid Three-Phase Dual-MPPT Solar Inverter

OOITECH 15KTLX-G3 On-Grid Three-Phase Dual-MPPT Solar Inverter

Time: 2021-12-23
visits: 65
PV Out Power: 10-20KW
Phase: Three Phase
Grid: on-grid
Details

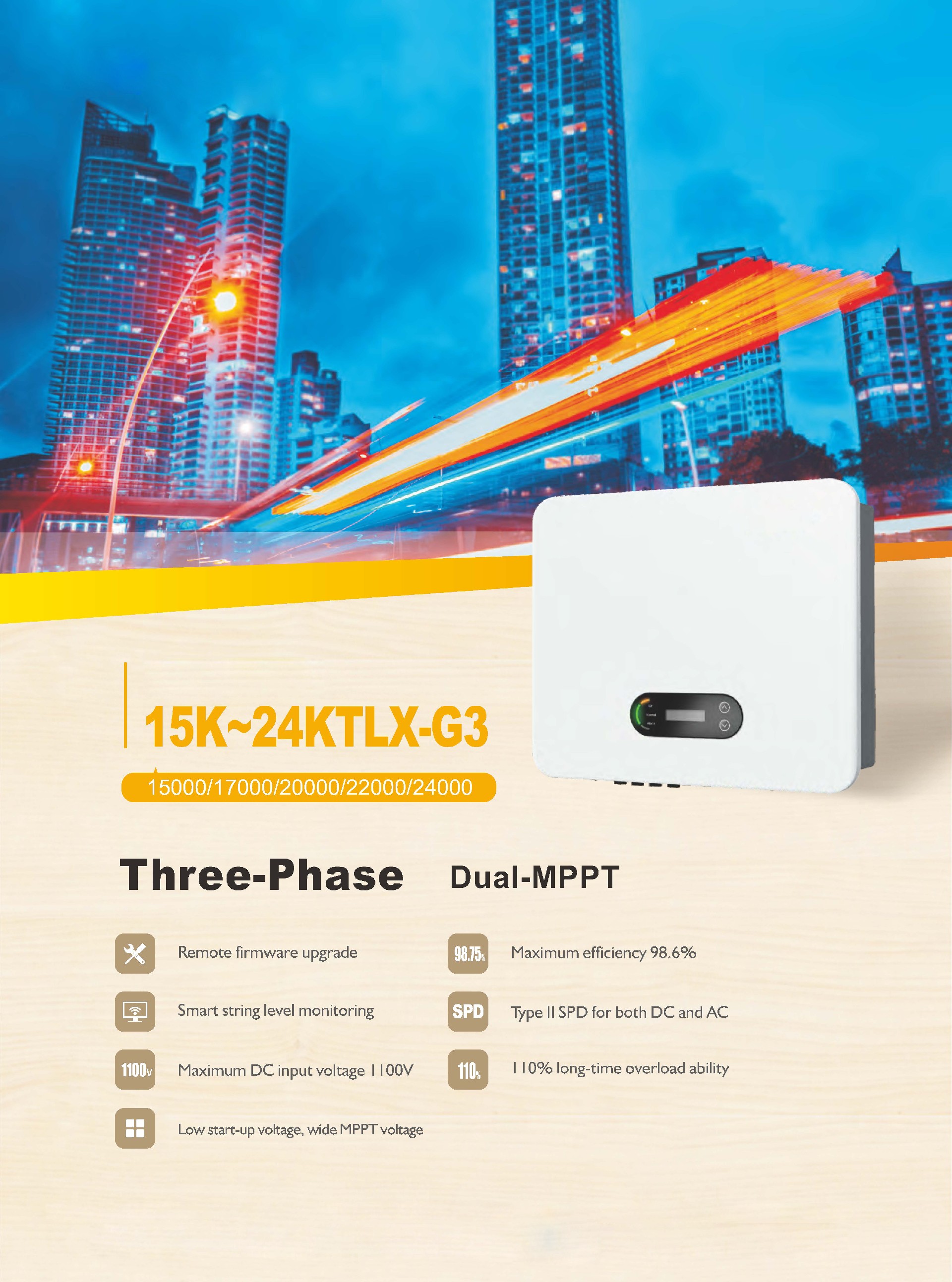

Features:

1. Remote firmware upgrade

2. Maximum efficiency 98.6%

3. Smart string level monitoring

4. Type II SPD for both DC and AC

5. Maximum DC input voltage 1100V

6. 110% long-time overload ability

7. Low start-up voltage, wide MPPT voltage

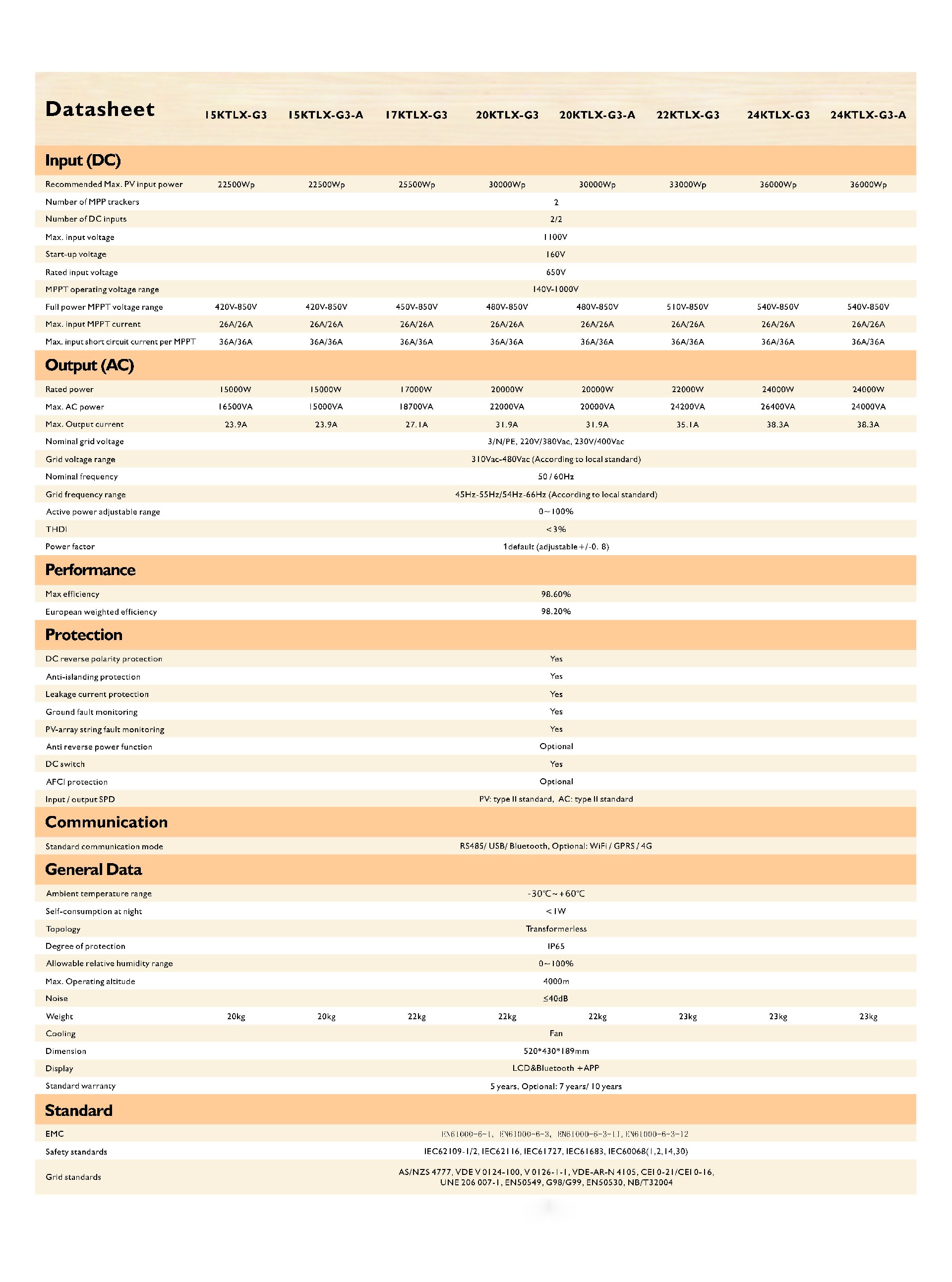

Datasheet

15KTLX

-G3

15KTLX

-G3-A

17KTLX

-G3

20KTLX

-G3

20KTLX

-G3-A

22KTLX

-G3

24KTLX

-G3

24KTLX

-G3-A

Input (DC)

Recommended Max. PV input power

22500Wp

22500Wp

22500Wp

30000Wp

30000Wp

33000Wp

36000Wp

36000Wp

Number of MPP trackers

2

Number of DC inputs

2/2

Max. Input voltage

1100V

Start-up voltage

160V

Rated input voltage

650V

MPPT operating voltage range

140V-1000V

Full power MPPT voltage range

420V-850V

420V-850V

450V-850V

480V-850V

480V-850V

510V-850V

540V-850V

5400V-850V

Max. Input current per MPPT

26A/26A

26A/26A

26A/26A

26A/26A

26A/26A

26A/26A

26A/26A

26A/26A



Max. Input short circuit current per   MPPT

36A/36A

36A/36A

36A/36A

36A/36A

36A/36A

36A/36A

36A/36A

36A/36A

Outpu(AC)

Rated power

15000W

15000W

17000W

20000W

20000W

22000W

24000W

24000W

Max. AC power

16500VA

15000VA

18700VA

22000VA

20000VA

24200VA

26400VA

24000VA

Max. Output current

23.9A

23.9A

27.1A

31.9A

31.9A

35.1A

38.3A

38.3A

Nominal grid voltage

3/N/PE, 220V/380Vac, 230V/400Vac

Grid voltage range

310Vac -480Vac (According to local   standard)

Nominal  frequency

50Hz/60Hz

Grid frequency range

45~55Hz/54~66Hz (According to local standard)

Active power adjustable range

0~100%

THDi

<3%

Power factor

1 default (adjustable+/-0. 8)

Performance

Max Efficiency

98.6%

European efficiency

98.2%

Protection

DC reverse polarity protection

Yes

Anti-islanding

Yes

Leakage current protection

Yes

Ground fault monitoring

Yes

PV-array string fault monitoring

Yes

Anti reverse power function

Yes

DC switch

Yes

AFCI protection

Optional

Input / output SPD

PV: type II standard,  AC: type II standard

Communication

Standard communication mode

RS485/USB/Bluetooth, Optional: WiFi   /GPRS/4G

General Data

Ambient temperature range

-30~+60

Self-consumption at night

<1W

Topology

Transformerless

Degree of protection

IP65

Allowable relative humidity range

0~100%

Max. Operating altitude

4000m

Noise

40dB

Weight

20kg

20kg

22kg

22kg

22kg

23kg

23kg

23kg

Cooling

Fan

Dimension

520*430*189mm

Display

LCD & Bluetooth + APP

Warranty

5 years, Optional: 7 & 10 years

Standard

EMC

EN 61000-6-1, EN 61000-6-3, EN 61000-6-3-11,   EN 61000-6-3-12,

Safety standards

IEC62109-1/2, IEC62116, IEC61727,   IEC-61683, IEC60068(1,2,14,30)

Grid standards

AS/NZS 4777,   VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, CEI 0-21/CEI 0-16, UNE 206 007-1,   EN50549, G98/G99, EN50530, NB/T32004
